Universal ROLLBLOC
Die Loading Arms
ATTACHED IN MOUNTING HOOKS

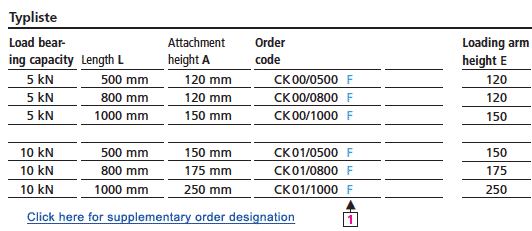

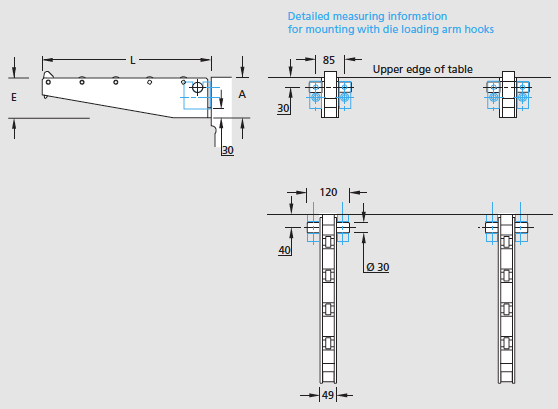

ROLLBLOC Die Loading Arms CK 00/01

Overhung version
Please order mounting hooks for accepting the die loading arms separately.
For mounting to the press table, see attachment support height.



Dimensions



Diagram

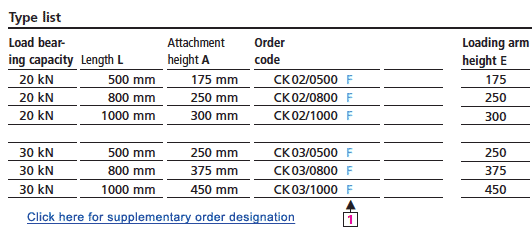

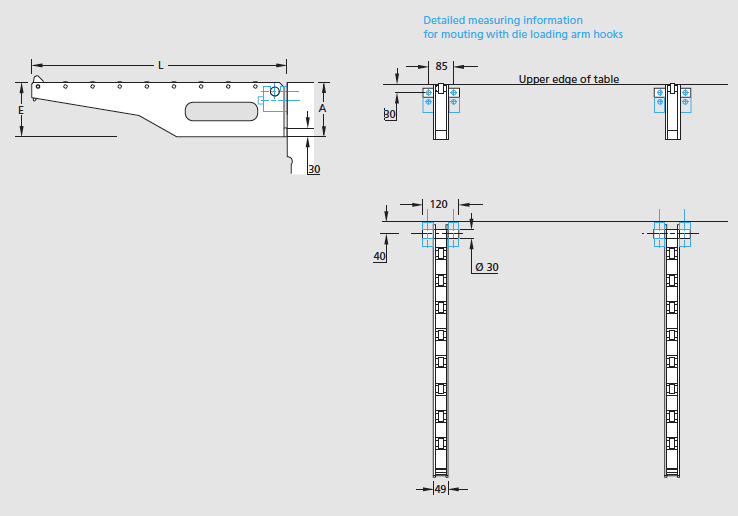

ROLLBLOC Die Loading Arms CK 02/03

Overhung version
Please order mounting hooks for accepting the die loading arms separately.
For mounting to the press table, see attachment support height.



Schematic diagra



Detailed
