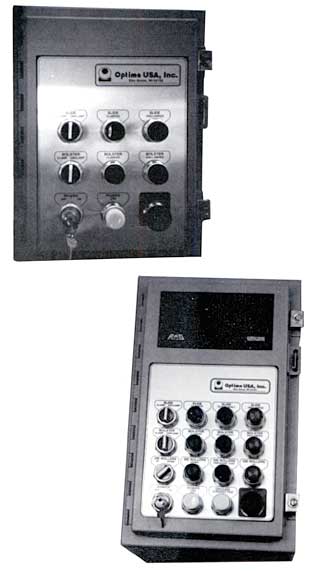

OPECP
Electric Control Panel
Description
All OPECP Operator Panels are designed and built to function seamlessly with OPPTA Pump/Tanks. Panels provide the necessary interface between clamps, die rollers and pump/tank unit. Constant state monitoring provides unparalleled operator safety. Large Switch Gear and Pilot Lights provide easy Operator monitoring and information feedback. The panels are NEMA 12 rated and feature rugged all steel construction.
Features
- Easy to use control of clamps and die rollers
- Constant State Indicator Pilot Lights
- Fail Safe Relay Logic E-Stop Interface
- Designed as a Turn Key System when used in conjunction with OPPTA Pump/Tank Unit
- NEMA 12 rated enclosures
- Allen Bradley* Switch Gear and Operator Interface
- Custom PLC Controlled Operator Interfaces including Touch Screen Operation and Messaging available upon request
* Note: Square D, Cuttler Hammer, Etc. available upon request
Technical data
| Model | Operating Voltage | Control Logic | Dimensions W X L X H |
Description and Recommended Application |
| IPECP-1U (Note: Replace "1" with desired number of control circuits) |
120 VAC | Relay Based | 10.00" x 12.00" x 5.00" | Standard Operator Panel designed to interface w/OPPTA Pump/Tank |
| IPECP-1E (Note: Replace "1" with desired number of control circuits) |
24 VDC | Relay Based | 10.00" x 12.00" x 5.00" | Operator Panel designed to interface w/OPPTE Pump/Tank |
| IPECP-1S (Note: Replace "1" with desired number of control circuits) |
24 VDC 120 VAC or 480 VAC |
Relay or PLC Based |
14.50" x 15.00" x 17.50" | Custom Built Panels for Large Scale Press Interface Requirements |
