Electro-Mechanical Turn-Sink Clamp

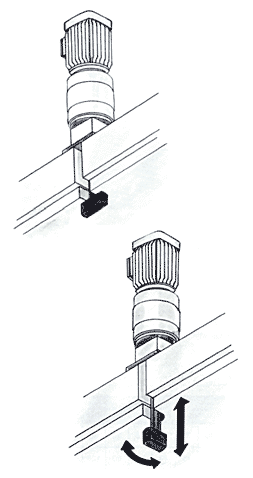

Diagram

Optima's EDH Turn-Sink Clamp represents the culmination of 25 years experience in the tool clamping field. These electro-mechanical units offer the highest degree of operational safety with unmatched reliability and clamping versatility. The unique advantages of these self contained units (no external power sources, i.e. hydraulics, required) make them ideal for both OEM and retrofit applications.

Features



Dimensional diagrams

Type Clamp
Force
(tons)
Holding
Capacity
(tons)
LSP+
min
LSP+
max
Motor
Power
(hp)
A B C D E F G H K M*
(min)
N P Q Weight
(lbs.)
EDH 60 6.6 11 0.39 2.36 0.75 18.97 15.24 0.79 5.90 4.02 6.30 5.12 0.12 0.08 1.30 2.48 0.98 1.57 77
EDH 120 13.2 22 0.39 2.76 1.00 20.55 16.25 0.79 6.30 4.88 6.30 5.12 0.12 0.08 1.50 3.15 1.18 1.57 88
EDH 240 26.4 44 0.39 3.15 2.00 23.35 19.06 0.79 6.30 4.88 6.30 5.12 0.12 0.08 2.28 3.86 1.97 2.17 88

Motors:
Standard 3-phase motors
Voltage 460V/60 Hz
DF 3%-15%
n = 3000 rpm
Limit Switches:
4 "Balluff" proximity switches
Voltage 24V
Cable lenght 10ft.
Temperature:
Applications up to 160°F
Mounting:
For installation please use
4 socked head cap screws
(1/2", Grade 8)
