ROLLBLOC Die Loading Arms

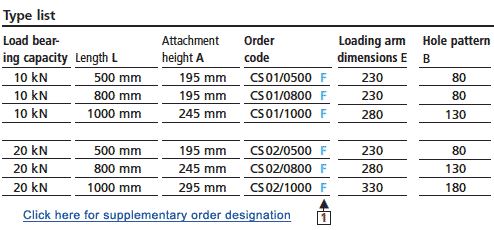

ROLLBLOC Die Loading Arms CS 01/02

Swivel version, symmetric
Fixed to the press table
With locking mechanism

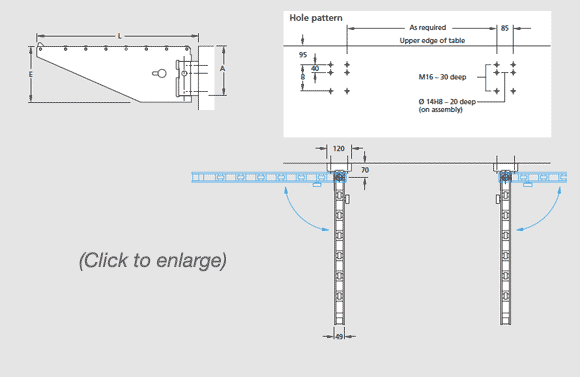

Dimensions



Diagram



FOR FIXED MOUNTING TO THE PRESS TABLE

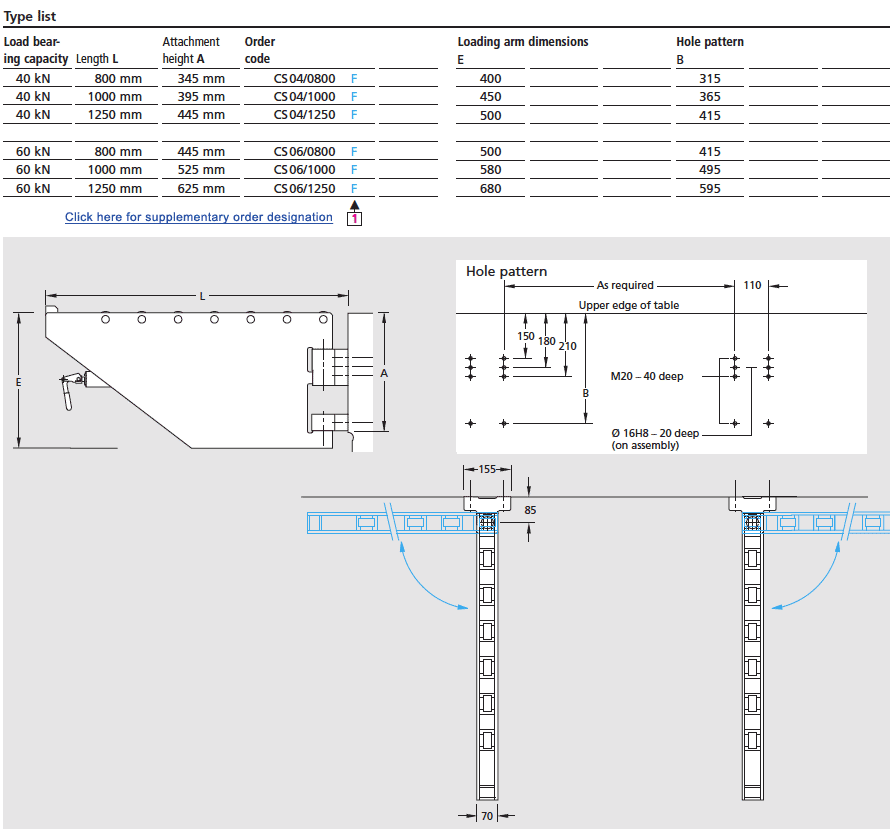

ROLLBLOC Die Loading Arms CS 04/06

Swivel version, symmetric
Fixed to the press table
With locking mechanism



Schematic diagra
